In this paper, we present i3D, a system that combines the 3D input and high-performance rendering capabilities of high-end virtual reality systems with the data fetching abilities of network browsers. Using a Spaceball, the user can intuitively navigate inside the three-dimensional data, while selecting 3D objects with the mouse triggers requests for access to remote media documents that can be text, still images, animations or even other 3D models. Time-critical rendering techniques allow the system to display complex 3D scenes at high and constant frame rates, making it possible to use it in the context of large scale projects. The system is currently being used at CERN as a visualization and data management tool for the design of the new Large Hadron Collider, and at CRS4 for the Virtual Sardinia project. i3D is available through anonymous ftp from various sites on the Internet.
Hypermedia, 3D Visualization, VRML, WWW Browser, View-and-markup Tools.
The World-Wide-Web (WWW) has rapidly become one of the fundamental structures of the Internet. It adds a universal organization to the data made available on the Internet allowing to view all hosts as a unique data source, and to treat all of this data as parts of a single structured document [11]. The HyperText Markup Language used to describe WWW documents has its roots in SGML [17], a format for printed media, and is therefore intrinsically suited for the composition of bidimensional documents composed of textual and pictorial data. Other types of media like digital video and sound are accessible through the invocation of external specialized viewer applications.
The availability, at a relatively low costs, of 3D graphics workstations able to display scenes composed of thousands of polygons at interactive speeds, has made it possible to bring 3D data to the World Wide Web through specialized viewers for this new kind of media. However, it has been rapidly identified that the effectiveness of interactive 3D viewers in communicating information about 3D environments can be dramatically enhanced by attaching digital media annotations to the environment's models. By allowing users to interactively recall and view the attached information by selecting objects of interest during navigation, the interactive 3D viewer becomes a natural front-end for querying information about 3D models. Annotations can refer to text, still images, animations or even other 3D models, exploiting that way all of the digital media capabilities of current workstations.
As an example, in architectural CAD applications, the virtual building representation could be augmented by linking to its various components the original drawings showing engineering details of the structure, photographs of the real site, and so on. The interactive 3D model can therefore be used for data management purposes during the design phase, and information about the building can be presented to the client with maximum efficiency.
When exploring three-dimensional environments, navigation using interactive control of virtual camera motions is often the most important form of three-dimensional interaction [19][6][9]. Multiple degree-of-freedom input devices as the Spaceball and the 3D mice allows interactive 3D viewing with continuous viewpoint control, hence providing visual cues of an invaluable help in understanding the structure of the three-dimensional data. It requires that images be rendered smoothly and quickly enough so that an illusion of real-time exploration of a virtual environment can be achieved as the simulated observer navigates through the model [6][2][18].

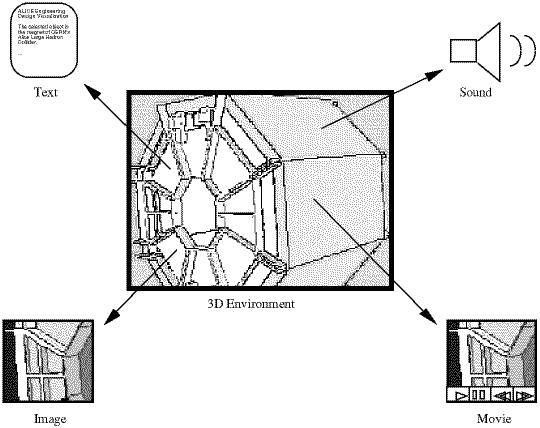

Figure 1. Annotated 3D Model
There are a number of systems that currently have some of these capabilities, but none that possesses them all. Visual simulation and virtual reality systems such as dVISE [7] and Performer [14] strive at providing support for high-performance rendering and multi-dimensional input but do not permit the annotation of 3D models with other digital media. Iris Annotator [16] is a 3D view-and-markup utility that allows users to attach digital media annotations to 3D objects. However, Iris Annotator's documents are monolithic and cannot be shared over the network. WWW browsers such as NCSA Mosaic or Netscape are good at fetching many kinds of data over the Internet, but are currently not able to deal with annotated 3D objects [5]. To overcome this limitation, 3D geometry viewers such as Geomview [10] have been connected to WWW browsers to permit the inclusion of 3D models as elements of an hypertext document [1][8], a new language, VRML, has been defined to serve as a standard for defining 3D scenes hyperlinked with the World Wide Web [12][13], and VRML browsers such as WebView from the San Diego Supercomputing Center and Webspace from Silicon Graphics, both based on Open Inventor [15], have been developed recently. The integration of a standard network browser with a 3D geometry viewer offers an ideal basis for a system geared towards the exploration of annotated 3D environments, but the geometry viewers that have been integrated with the WWW to date, as well as available 3D browsers, are limited to mouse-based interaction and are not able to ensure constant high frame rates when dealing with large datasets, thus limiting their appropriateness for large scale projects.
In this paper, we present i3D, a system for the interactive exploration of annotated 3D models described using VRML or a proprietary file format. It incorporates the 3D input and high-performance rendering capabilities of high end VR system with the data fetching abilities of network browsers. The system is currently being used at CERN as a visualization and data management tool for the design of the new Large Hadron Collider, and is available through anonymous ftp from various sites on the Internet.
i3D is a tool allowing the exploration of three-dimensional scenes annotated with any kind of media documents that can be accessed on the World Wide Web. It is implemented on top of X11 and OpenGL, and runs on Silicon Graphics workstations. Using a 3D device, the user can explore its three-dimensional data and request access to other documents. When retrieving and displaying media documents, i3D handles directly the three-dimensional data and collaborates with NCSA Mosaic or Netscape for other types of media.
Figure 2. Application overview
i3D's device configuration uses a Spaceball and a mouse as input devices. The Spaceball is used for the continuous specification of the camera's position and orientation, while the mouse is used to select objects and access media documents. Both user's hands can therefore be employed simultaneously to input information (figure 3). Additionally, abstractions of the 2D mouse motions into 3D transformations are also provided so that navigation be possible when no Spaceball is available. A pop-up menu as well as keyboard commands are used to control various visibility flags and rendering modes. The ability to continuously specify complex camera motions in an intuitive way together with high visual feedback rates provides an accurate simulation of motion parallax, one of the most important depth cues when dealing with large environments [2].

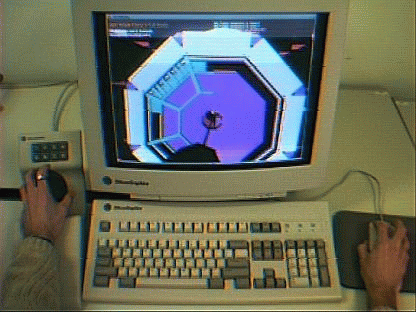

Figure 3. i3D's device configuration
While navigating inside a three-dimensional scene, the user can request additional information by accessing media documents associated with geometrical data. Since annotated geometries are drawn with a blue silhouette, they can be easily identified. Selecting an annotated geometry by clicking on its visual representation with the mouse triggers the document retrieval and display. For three-dimensional scenes, i3D maintains a stack of active worlds. Using keyboard commands, the previous or next world in the stack can be made current, thus providing a mean to quickly navigate among active worlds.
i3D's database manager stores the representation of three-dimensional scenes as a collection of 3D objects, including light sources and cameras. From the set of world's objects, the database manager builds an octree spatial subdivision to be able to answer rapidly to spatial queries, as for example when selecting objects by tracing a ray from the mouse position.
The generic 3D object possesses the following attributes:
Geometric, material and texture objects can be shared by multiple 3D objects of a same scene. Lights have an additional attribute that defines the spread angle while cameras define their viewing volume. The fact that geometrical objects can be associated to lights and cameras allows to make these special types of 3D objects visible and selectable and thus annotatable with media documents. Currently, geometric objects can be described as a list of independent triangles or as a list of independent line segments.
The task of the i3D's rendering manager is to display a visual representation of the current world at high and constant frame rates. During navigation, the rendering manager is activated at regular intervals by the main i3D event loop and is requested to refresh the screen while adhering to the user-specified timing constraint.
At each activation, the rendering manager renders a single frame by executing the following steps:
i3D uses a specific ASCII file format for the description of the 3D objects and media documents references that composes a three-dimensional scene. 3D objects and their associated visual attributes are considered to be designed externally using modeling tools or CAD systems and then converted to i3D's file format. In order to make scene conversion an automatic process, we provide a suite of converting and scene processing tools that help world designers to import their three-dimensional data into i3D.
VRML files are converted on the fly by the browser when VRML are retrieved, either for inlining or when following hyperlinks.
Currently, we provide converters from Wavefront's OBJ ASCII file format and from the subset of the Inventor ASCII file format that defines VRML [12]. For both file formats, only geometries defined by primitives and polygon or line lists are supported. Three-dimensional transformations, as well as material and texture information associated with the converted geometries are also translated when specified. In order to define a complete 3D scene for i3D, these individual geometries need to be combined into a single file, media documents must be associated with geometries, and finally the shining lights as well as the rendering camera must be specified. A specific utility able to process all VRML or Wavefront geometry files in a directory and to merge them into a single i3D scene file is provided to simplify this step. For VRML files, cameras, lights, levels of detail and media annotations are also converted. If only geometrical data is available, the scene file may need to be edited with a text editor to associate media documents with the geometries and to define the camera and lights. However, i3D enforces default behaviors for viewing and lightning when no lights and/or camera are defined in the scene file.
When dealing with geometries, the way objects were constructed or exported with the modeling tool or CAD system may influence the visual representation of the objects or the viewer's rendering performance. A typical problem is the normal direction not being specified or defined only per face, hence resulting in a flat shading rendering of the object. Another typical problem is that often multiple topologically separated models are merged inside a single geometry file, hence preventing efficient culling when rendering. Filtering tools are provided to help world designers to work around these problems by smoothing normal vectors and splitting geometries. Additionally, another filter can be used to define trivial levels of detail by creating oriented bounding-box geometries around small objects.
In order to give a flavor of defining annotated three-dimensional scenes using the i3D file format, figure 5 depicts a file that, when loaded, defines the simple three-dimensional scene shown in figure 4. The scene is composed of three textured cubes. The material and the triangle list defining the cube's geometry are shared among the 3D objects. Each cube is associated with a different texture image that is accessed through HTTP. Media annotations link the cubes to three documents: the cube on the left references an HTML document, the center cube references a MPEG movie, while the cube on the right references an alternate 3D scene.
Figure 4. A simple annotated 3D scene
Material white_emissive { Ambient 0. 0. 0. Diffuse 0. 0. 0. Emission 1. 1. 1. Specular 0. 0. 0. Shininess 0. Alpha 1. }Figure 5. i3D textual definition for a simple annotated 3D scene
Material red_plastic { Diffuse 0.8 0.0 0.0 Specular 0.2 0.2 0.2 Shininess 0.5 Alpha 1. }
TriangleList unit_cube { Triangle p -1. 1. -1. -1. 1. 1. 1. 1. 1. \ t -1. 1. 0. -1. 1. 0. 1. 1. 0. ...
Triangle p -1. 1. 1. 1. -1. 1. 1. 1. 1. \ t -1. 1. 0. 1. -1. 0. 1. 1. 0. }
Texture skull { Image "http://www.crs4.it/i3d/3d/skull.rgb.Z" }
Node movie_node { # Scale(sx,sy,sz)*Shear(sxy,sxz,syz)*Rot(rx,ry,rz)*Trans(tx,ty,tz) frame s 8. 10. 10. \ t 0. 0. 0. material red_plastic texture skull geometry unit_cube url "http://www.crs4.it/Animate/boneopaque.mpg" }
Texture sciviz { Image "http://www.crs4.it/i3d/3d/sciviz.rgb.Z" }
Node sciviz_node { frame s 8. 10. 10. \ t -17. 0. 0. material red_plastic texture sciviz geometry unit_cube url "http://www.crs4.it/~zip/group_homepage.html" }
Texture alice { Image "http://www.crs4.it/i3d/3d/alice.rgb.Z" }
Node alice_node { frame s 8. 10. 10. \ t 17. 0. 0. material red_plastic texture alice geometry unit_cube url "http://www.crs4.it/i3d/3d/alice.3d.Z" }
Light light { frame t 0. 0. 200. material white_emissive angle 30. }
Camera default_camera { frame t 0. 5. 85. perspective 45. 1. 10. 100000. 0. }
The European Laboratory for Particle Physics (CERN) is currently involved in designing its next generation particle accelerator, namely the Large Hadron Collider (LHC). In any project of this scale, the design phase is probably the most delicate one, as this is when some critical choices are to be taken which might dramatically affect the final results, timing and costs. The ability to visualize the model in depth is essential to a good understanding of the interrelationships between the parts. An iterative design optimization process can improve remarkably space management and ergonomic issues. However with the visual capability of the present CAD tools, it takes a fair amount of time and imagination to isolate eventual design faults. A pilot project was started at CERN in January '94, named VENUS (Virtual Environment Navigation in the Underground Sites). Its mandate is to produce a detailed virtual prototype of the LHC premises and allow navigation and access to engineering data in the form of flythrough by natural interaction. The i3D system is being actively used for the exploration of the virtual prototype. Figure 6 shows a snapshot of a typical i3D session.
The VENUS virtual prototype is entirely extracted from the original EUCLID CAD database. As soon as engineers add new drawings, these are extracted and converted to the i3D format in two steps: first, EUCLID data is converted to Wavefront OBJ format; then, the resulting Wavefront objects are converted to i3D and assembled into a scene. Some minor manual treatment is necessary at the moment, in order to compensate for lack of some features (e.g. color and textures) in the EUCLID to Wavefront converter utility supplied by Matra-Datavision. Annotations that refer to various sources of information are then added by associating URLs to relevant 3D objects. A further step is necessary to optimize the geometry for interactive navigation. All the process is fairly automatic and does not require major efforts, since the data conversion and optimization are handled by software utilities. The entire conversion process should be completely automated in the near future, and triggered from the EUCLID side upon any significant changes to the geometry. This way the virtual prototype will always reflect the latest state of the design.

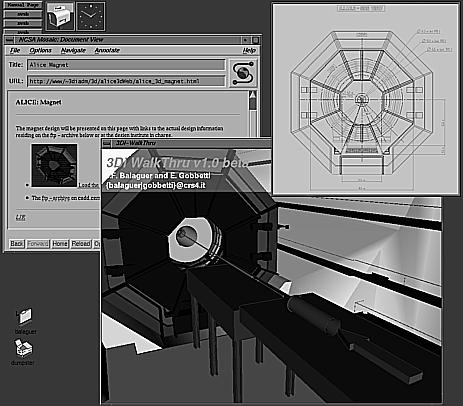

Figure 6. Exploring CERN Alice
RENDERING OPTIMIZATION Target RENDERED OBJECTS RENDERED RENDERING TIME frame rate is 40 ms TRIANGLES None 171 34291 80 ms Culling 124 20627 60 ms LOD Selection 144 23843 60 ms Culling and LOD Selection 98 14419 40 ms
Figure 7 presents the average rendering statistics of i3D for the generation of the frame presented in figure 6 on a Silicon Graphics Onyx RE2..
Objects in the scene are specified at one or two levels of detail. The user specified an expected frame rate of 20 frames/second and a desired graphical load of 80%. This means that the user desired a constant frame duration of 50 ms, with 40 ms allocated to rendering and 10 ms for all other tasks. By combining hierarchical culling and level of detail selection, the system is able to adhere to the timing requirements.
The Virtual Sardinia project under realization at CRS4 aims at providing on the Internet easily accessible information on the island of Sardinia.
Using i3D, users can explore a 3D model of the island, built from digital terrain model data textured with satellite images. 3D markers are positioned on the surface of the terrain to indicate sites of interest. The interactive selection of one of these markers during navigation triggers the request for accessing a descriptive document, while the selection of a location on the terrain triggers the request to view a high-resolution version of the area surrounding the selected point.
The possibilities of i3D are exploited to allow the exploration of detailed terrain models on a range of machines. To produce the i3D description of the terrain, the original terrain data (a regular grid) is subdivided into subregions that can be drawn and culled independently, and each subregion is described at various level of detail by transforming the original regular grid into simpler irregular triangular meshes through a decimation process that iteratively groups nearly coplanar polygons and simplifies them. Different tolerances for planarity checks are used to produce the various levels of detail. To avoid cracking problems, small tolerances are used at the borders of the subregions. In addition to the optimization of the geometric model, images that are to be used as textures are clipped and rescaled so as to have them fit into texture memory. All these optimizations are done automatically by a tool that takes as input the original digital terrain model, the satellite images and a list of descriptions of geographical location that have to be marked and assiciated to an hyperlink.
Thanks to hierarchical culling and on-the-fly level of detail selection, the resulting model can be explored at interactive speed (more than 10 frames per second) on a Silicon Graphics Onyx RE2).

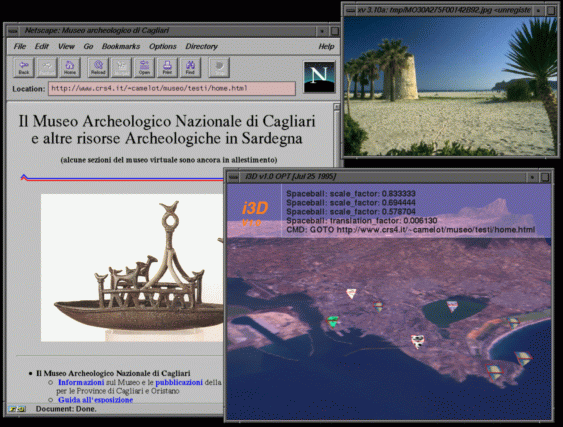

Figure 8 Exploring Sardinia
4. CONCLUSIONS AND FUTURE WORK
We have presented i3D a system that combines the 3D input and
high-performance rendering of high-end VR systems with data fetching abilities
of network browsers. Using a Spaceball, the user can intuitively navigate
inside the three-dimensional data, while selecting 3D objects with the mouse
triggers requests for access to remote media documents. Time-critical rendering
techniques allow the system to display complex 3D scenes at high and constant
frame rates. The system is currently being used at CERN as a visualization and
data management tool for the design of the new Large Hadron Collider, and at CRS4 for the Virtual Sardinia project.
Starting from June 1995, unsupported binaries of i3D have been also made
publicly available by CRS4 through anonymous ftp at the address
ftp://ftp-venus.cern.ch/pub/I3D. Mirror sites are listed in
http://www-venus.cern.ch/i3d/i3d-install.html.
[1] Burchard P (1995) The Cyberview 3D Manual. The Geometry
Center. University of Minnesota.
[2] Brooks FP Jr, Frederick P (1986) Walkthrough - A Dynamic Graphics System
for Simulating Virtual Buildings Proc. SIGGRAPH Workshop on Interactive 3D
Graphics: 9-22.
[3] Berners-Lee TJ, Cailliau R, Groff JF, Pollermann B (1992) World-Wide Web:
The Information Universe. In Electronic Networking: Research, Applications,
and Policy 2(1): 52-58.
[4] Bryson S, Pausch R, Robinett W, van Dam A (1993), Implementing Virtual
Reality, SIGGRAPH Course Notes 43.
[5] Fox E (1993) Digital Libraries. IEEE Computer. Nov.
[6] Funkhouser TA, Séquin CH (1994) Adaptive Display Algorithms for
Interactive Frame Rates During Visualization of Complex Virtual Environments.
Proc. SIGGRAPH: 247-254.
[7] Ghee S, Naughton-Green J (1994) Programming Virtual Worlds. SIGGRAPH
Tutorial Notes on Programming Virtual Worlds: 6.1-6.58.
[8] Munzner T (1995) An Experiment in Three-Dimensional Distributed
Hypermedia. The Geometry Center. University of Minnesota.
[9] Mackinlay JD, Card S, Robertson G (1990) Rapid Controlled Movement Through
a Virtual 3D Workspace, Computer Graphics 24(4) : 171-176.
[10] Phillips M, Levy S, Munzner T (1994) Geomview User Manual. The
Geometry Center. University of Minnesota.
[11] Pesce M, Kennard P, Parise A (1994) Cyberspace, WWW1 Conference
Proceedings, May 1994.
[12] Parisi A, Pesce M (1994) Virtual Reality Markup Language (VRML). URL:
http://www.wired.com/vrml/.
[13] Raggett D (1994) Extending WWW to Support Platform-independent Virtual
Reality. URL: http://www.wired.com/vrml/.
[14] Rohlf J, Helman J (1994) Performer: A High Performance Multiprocessing
Toolkit for Real-Time 3D Graphics. Proc. SIGGRAPH: 381-395.
[15] Strauss PS, Carey R (1992) An Object-Oriented 3D Graphics Toolkit.
Proc. SIGGRAPH: 341-347.
[16] Silicon Graphics Inc. (1995) Iris Annotator User Manual.
[17] ISO 8879:1986, Information Processing Text and Office Systems Standard
Generalized Markup Language (SGML).
[18] Upson C, Fulhauber T, Kamins D, Laidlaw D, Schlegel D, Vroom J, Gurwitz R,
van Dam A (1989) The Application Visualization System: A Computational
Environment for Scientific Visualization. IEEE Computer Graphics and
Applications 9(4): 30-42.
